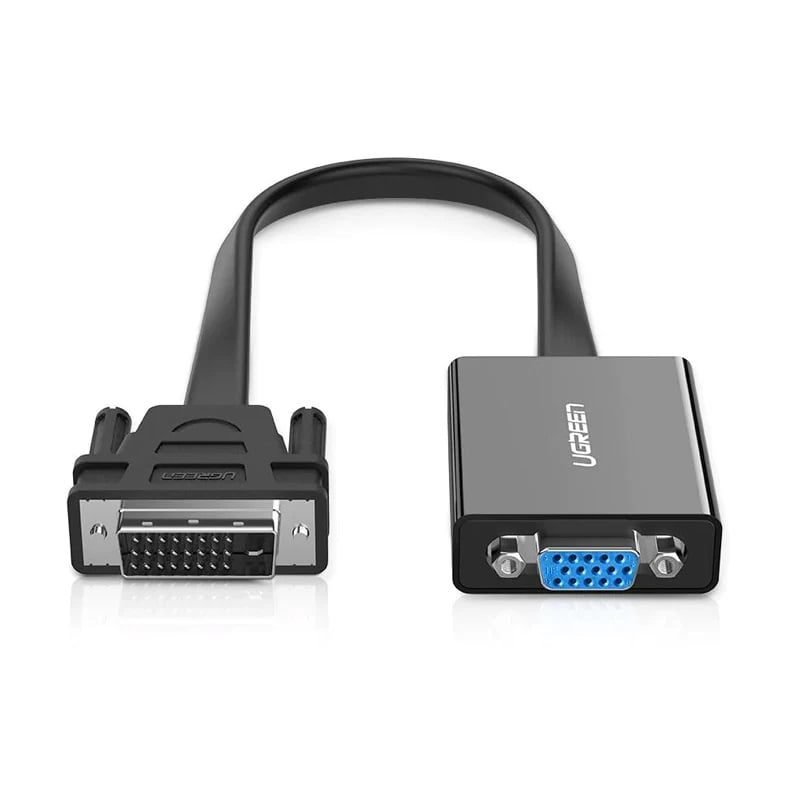

UGREEN DVI-D Male To VGA Female Active Converter

Description

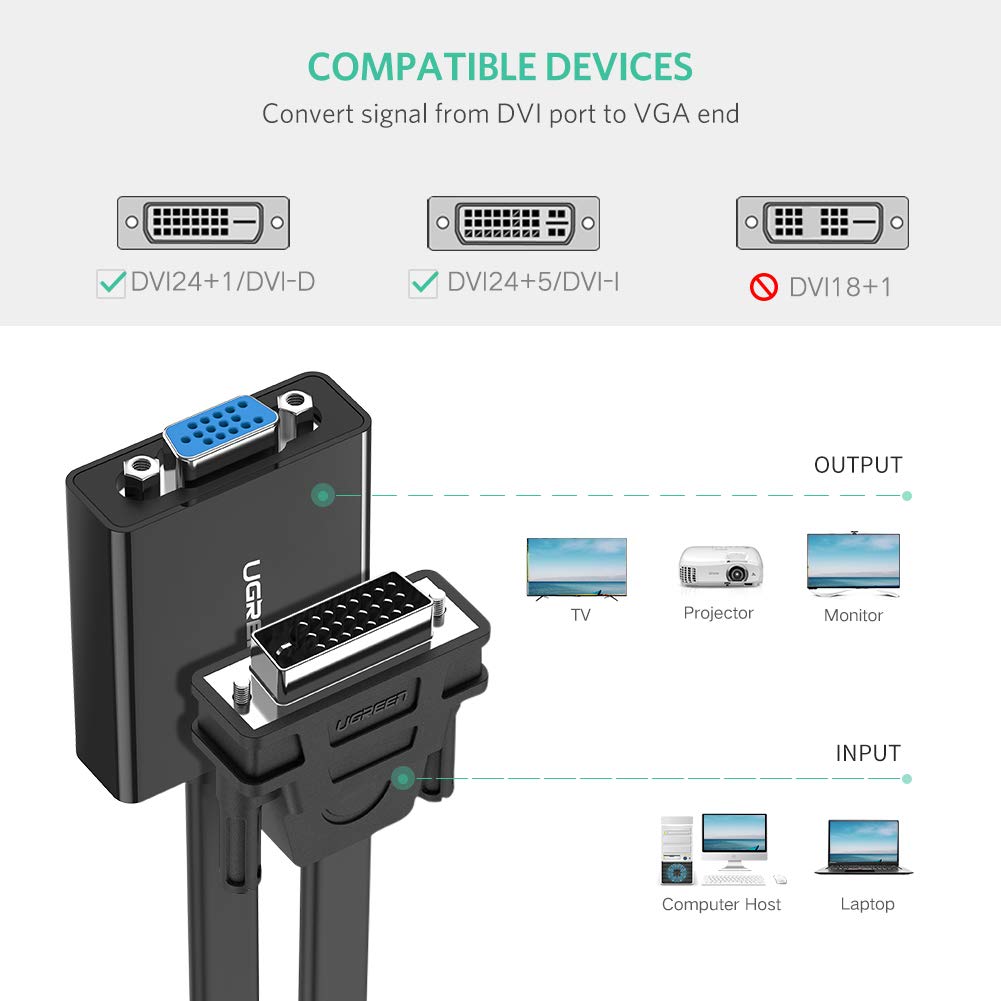

HOW IT WORKS: Active DVI to VGA Converter can be used to connect a video graphics card or PC with DVI-D 24+1 output (Compatible with DVI-I 24+5 as well) to a projector or monitor with VGA input (Single-way). An extra VGA cable (NO included) is required to connect the adapter to your display.

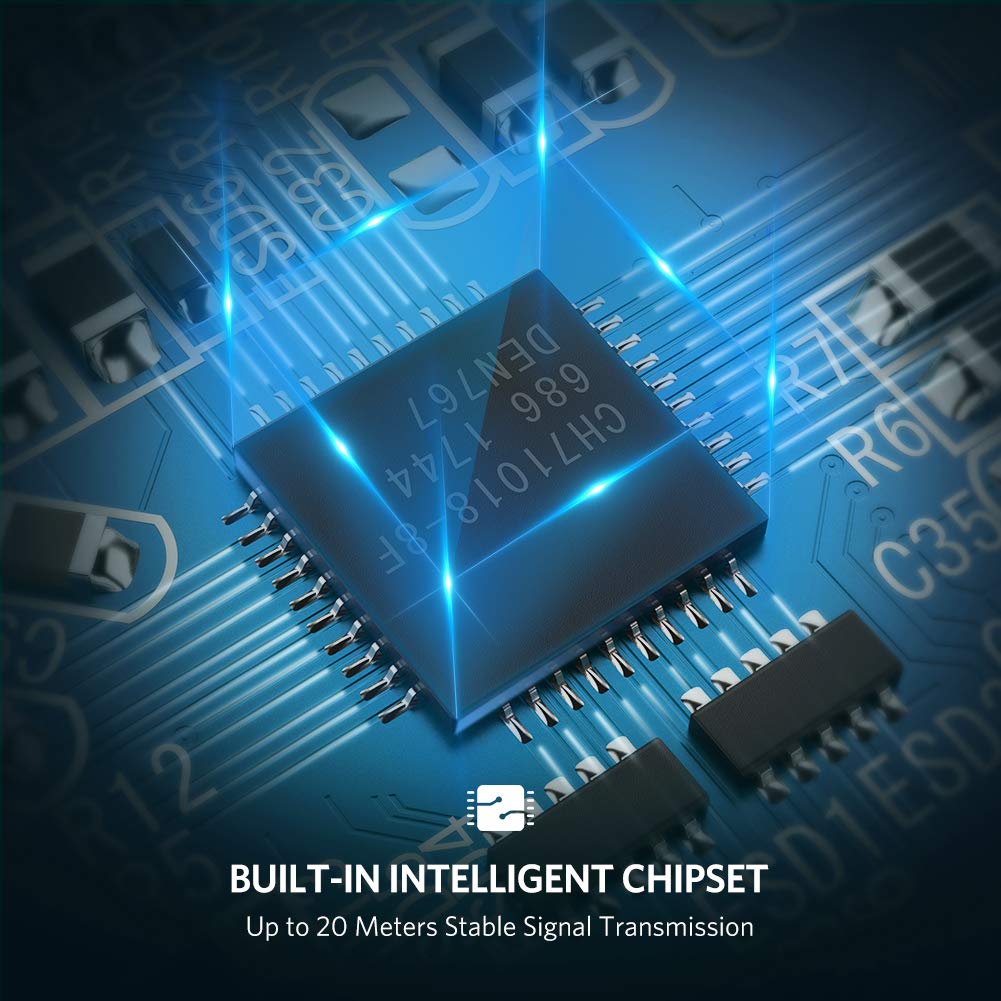

HIGH QUALITY VIDEO: The latest digital converter integrated chipset – CH7010 in the adapter ensures signal transmission lossless and improves the compatibility with more VGA devices. Video resolution supported includes 800×600, 1024×768, 1280×1024, 1600×1200 and 1920×1080 (1080p) @60Hz refresh rate.

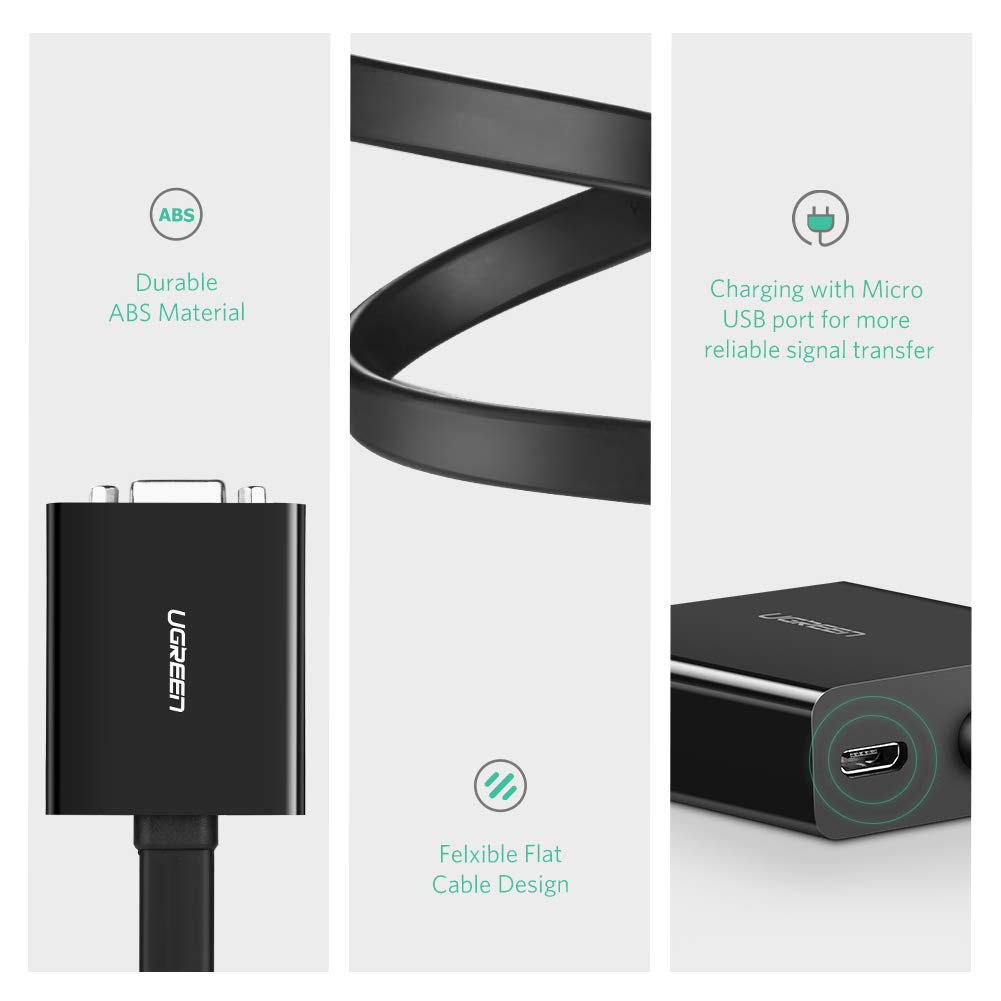

RELIABLE&FRIENDLY DESIGH: 24AWG Tin-plated pure copper inside improves anti-corrosion and anti-oxidant performance, handles long-distance transmission up to 20 meters. It is low-profile and portable that will not block your adjacent ports on your devices and easy to carry when travel or work. Compact, short cable tail reduces stress on the DVI port of your video card or computer. Finger tightened screws and frosted surface on DVI molded strain relief connector provides a secure connection.
UNIVERSAL COMPATIBILITY: No driver or software needed with Windows XP/7/8/ 8.1 /10/Vista, MAC OS 8.6 /9 and above.
One-Sec Easy Setup:
1. Make the physical connection.
2. Go to Screen resolution/Display settings on your computer to choose mirror/extend mode to activate output to the TV screen.
3. Switch to “External Inputs” on your TV and choose the correct one.
NOTE: Display screen must support a compatible resolution and refresh rate as the source. Plz power our device trough the micro USB port on it using a 5V/2A (Max) power adapter (NOT included) if you connect the adapter to the power hungry devices. Due to the limitation of VGA standard, audio transmission is not available for the adapter. ( 3.5 mm Audio cable is sold separately. 1080p DVI-D to VGA Adapter An ideal option to connect a video graphics card or PC with DVI-D(24+1) or DVI-I(24+5) interface to a projector or monitor with VGA input. With this adapter, you can enjoy HD video or other content on your big VGA display.
Specifications -Length: 30cm
-Input: 24+1
DVI digital signal -Output: VGA
analog signal -Resolution supported: 800×600, 1024×768, 1280×768, 1280×800, 1280×960, 1280×1024, 1440×900, 1600×1200, 1680×1050 @60Hz, 1920×1080 @60Hz, 3D available. -No driver or software needed.
Universal Compatibility -Compatible system: Windows XP/7/8/10/Vista, MAC OS 8.6 /9 and above.
-Compatible devices: Desktops, laptops and source devices with an available DVI output Note
1. Can only convert signal from DVI to VGA. This is not a bi-directional adapter.
2. Display must support a compatible refresh rate and resolution as the source.
3. Audio must be transmitted separately due to the limitation of VGA standard.
4. For some power hungry devices, the adapter may need extra power from your Micro USB cable.

Brand

UGREEN
